BK-CUS-0055-001

BK-CUS-0055-001
Product Name : BK-CUS-0055-001
Product Description

Place of Origin: Taiwan

Brand Name: Broadlake

Type: Heat Sink/ TO220, TO218

Material: C1100, T=0.6mm

Packaging Details: Carton / Pallet


Q'ty :
    Enlargement



    Product Character



       BROADLAKE CO ., LTD.


    Part Number BK-CUS-0055-001
    Material C1100, T=0.6mm
    Finish  Matte Tin Plated
    Certification ISO9001:2015REACH, RoHS2002/95/EC
    Field

    1. Stamped Heat Sink for Transistor Package

    2. Electronic Components

    3. Switching Power Supply

        Standard Heatsink for TO-220&TO-218 packages

        Mounted on the device by means of vertical horizontal direction

    Capability Max. 250T Press Machine
    Sample Contact us

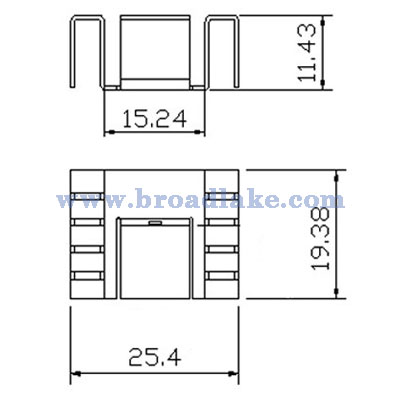

    Dimension       proimages/01-EMS/2-STAMPING_Drawing/1-只有浮水印/BK-CUS-0055-001_draw(400).jpg
