BK-ALU-0019-001

BK-ALU-0019-001
Product Name : BK-ALU-0019-001
Product Description

Place of Origin: Taiwan

Brand Name: Broadlake

Type: Heat Sink/ TO220, TO218

Material: AL5052, T=0.8mm

Packaging Details: Carton / Pallet


Q'ty :
  • BK-ALU-0019-001
  • BK-ALU-0019-001
  • BK-ALU-0019-001
Enlargement



Product Character



   BROADLAKE CO ., LTD.


Part Number BK-ALU-0019-001
Material AL5052 T=0.8mm
Finish  Black Anodized
Certification ISO9001:2015,REACH,RoHS2002/95/EC
Field

1. Stamped Heat Sink for Transistor Package

2. Electronic Components

3. Switching Power Supply

    Standard Heatsink for TO-220&TO-218 packages

    Mounted on the device by means of vertical horizontal direction

Capability Max. 250T Press Machine
Sample Contact us

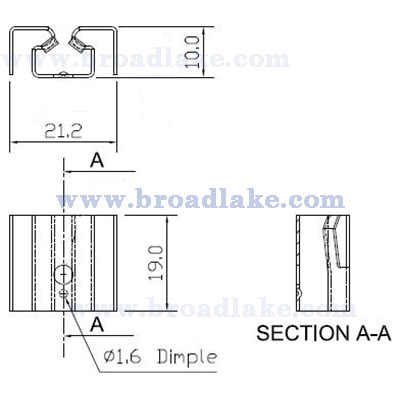

Dimension          proimages/01-EMS/2-STAMPING_Drawing/1-只有浮水印/BK-ALU-0019-001_draw(400).jpg
